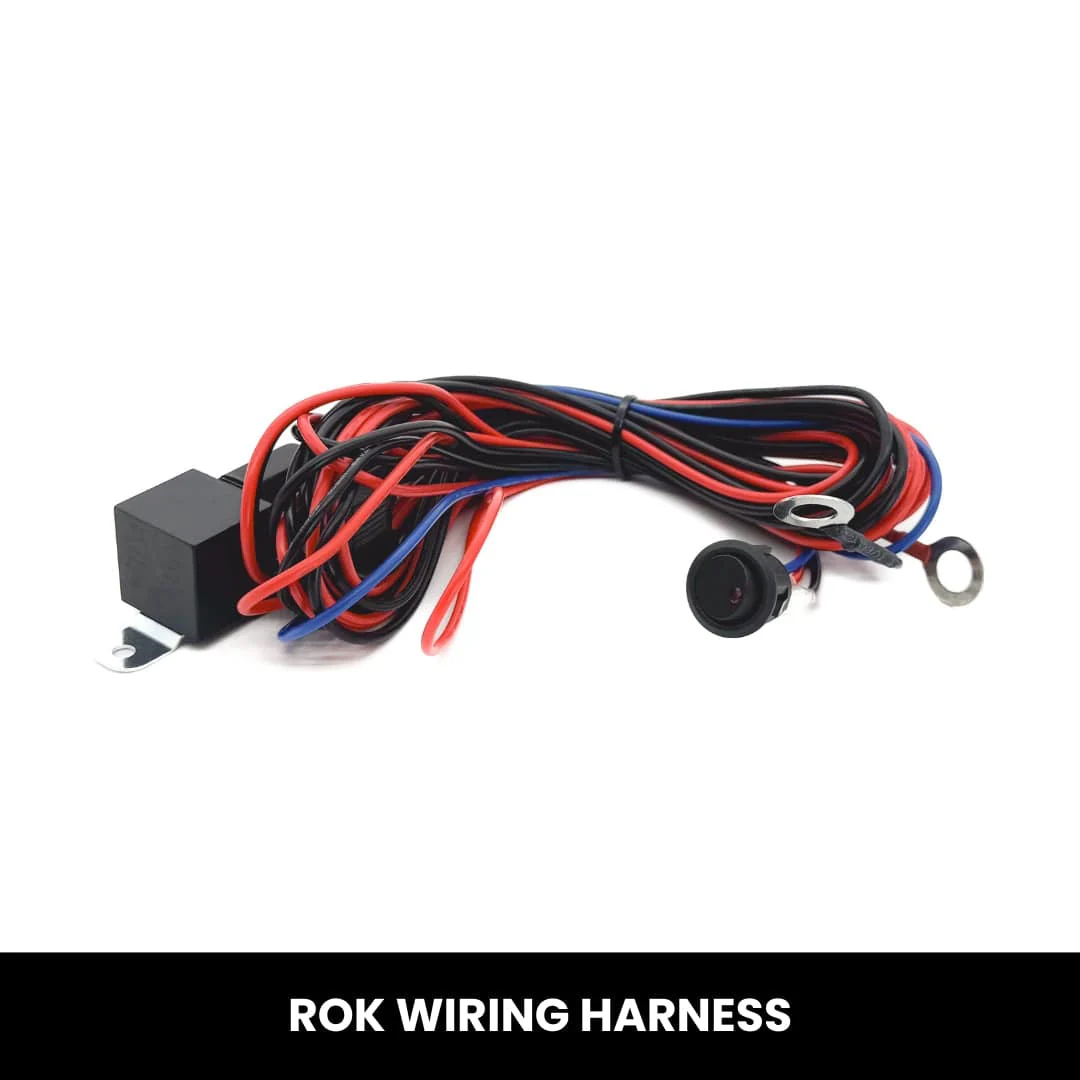

ROK Harness
This 12 volt wiring harness is suitable for use with the ROK 10, 20 and 40 series LED work lights.

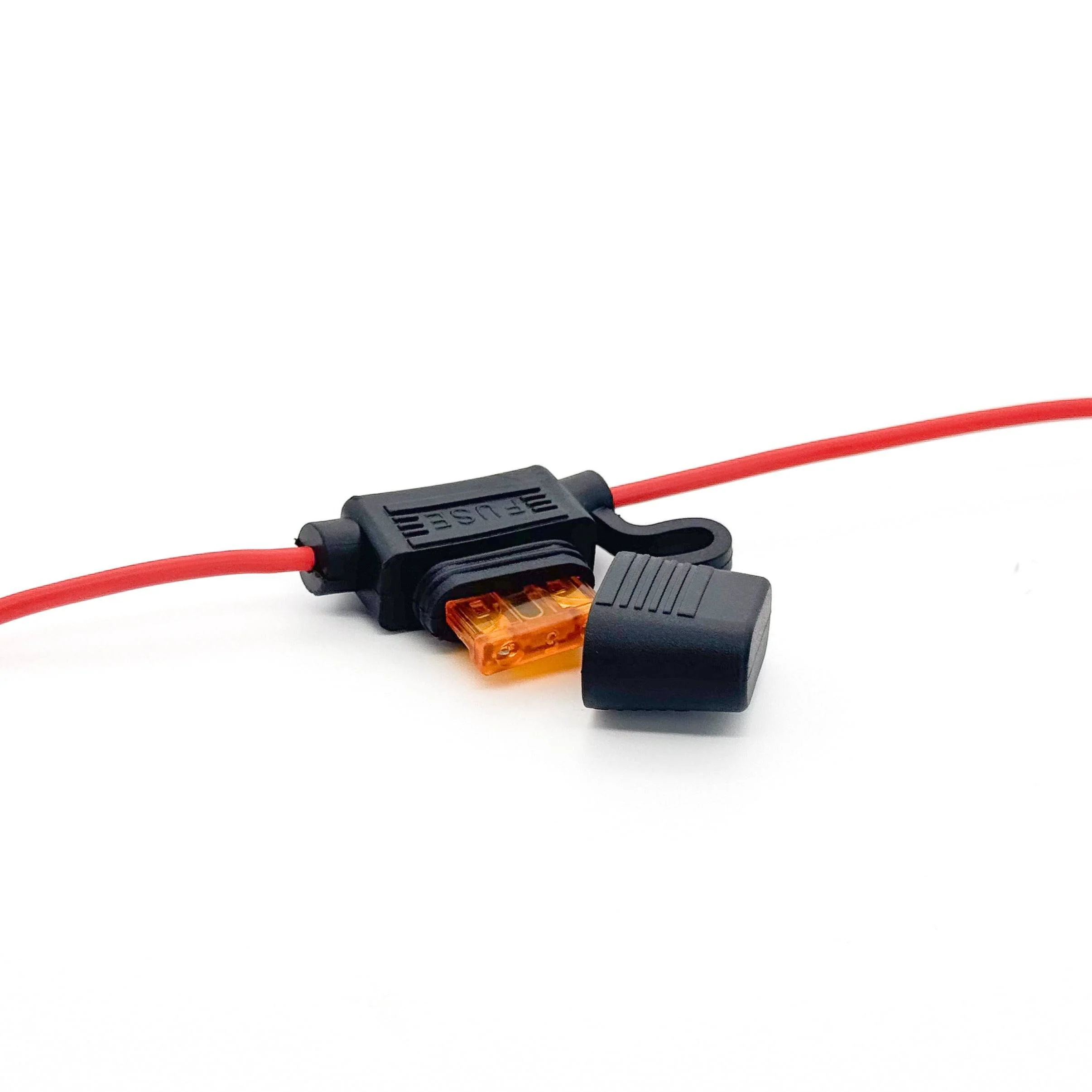

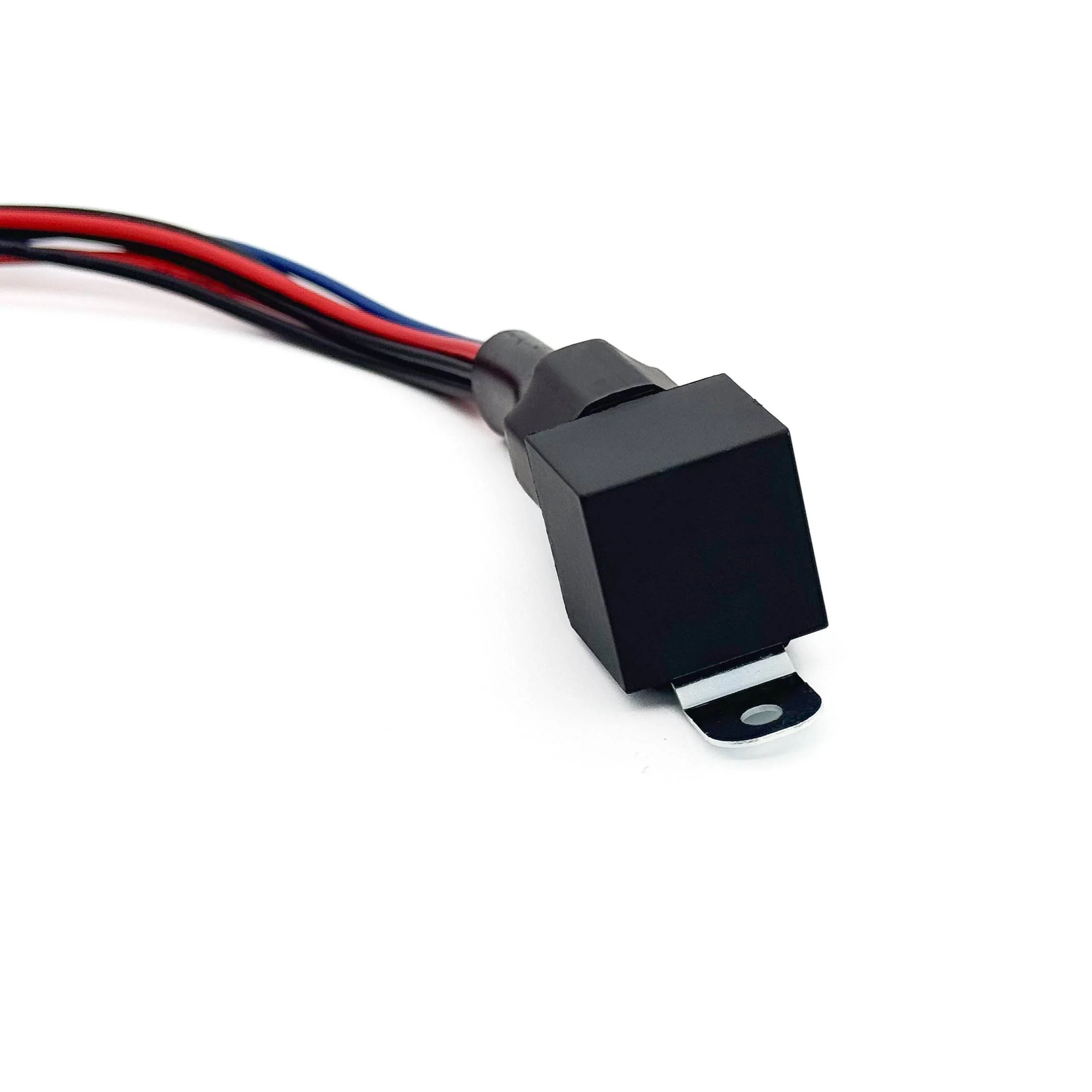

Harness incorporates a 40 amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch, with an inline fuse rated at 5 amps.
Cable lengths:
- Relay to Deutsch 2 pin connector - 2.3 meters
- Relay to battery ring terminals - 1.2 meters
- Relay to switch - 1.3 meters

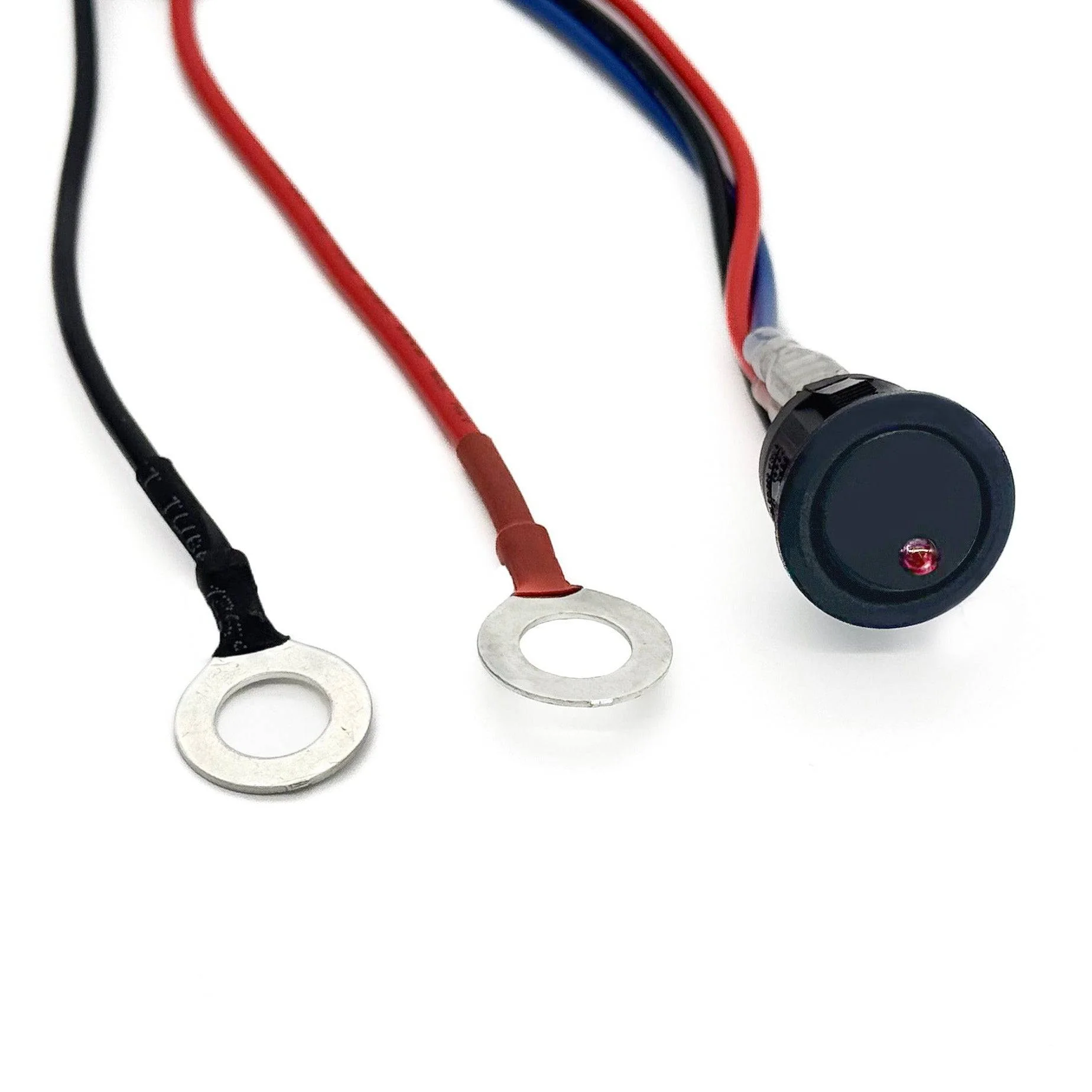

Switch connections:
- Pin 1: Blue - power out
- Pin 2: Red - power in
- Pin 3: Black - ground (for LED illumination)
Original: $29.67
-65%$29.67
$10.38More Images
ROK Harness
This 12 volt wiring harness is suitable for use with the ROK 10, 20 and 40 series LED work lights.
Harness incorporates a 40 amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch, with an inline fuse rated at 5 amps.
Cable lengths:
- Relay to Deutsch 2 pin connector - 2.3 meters
- Relay to battery ring terminals - 1.2 meters
- Relay to switch - 1.3 meters
Switch connections:
- Pin 1: Blue - power out
- Pin 2: Red - power in
- Pin 3: Black - ground (for LED illumination)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This 12 volt wiring harness is suitable for use with the ROK 10, 20 and 40 series LED work lights.
Harness incorporates a 40 amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch, with an inline fuse rated at 5 amps.
Cable lengths:
- Relay to Deutsch 2 pin connector - 2.3 meters
- Relay to battery ring terminals - 1.2 meters
- Relay to switch - 1.3 meters
Switch connections:
- Pin 1: Blue - power out
- Pin 2: Red - power in
- Pin 3: Black - ground (for LED illumination)
