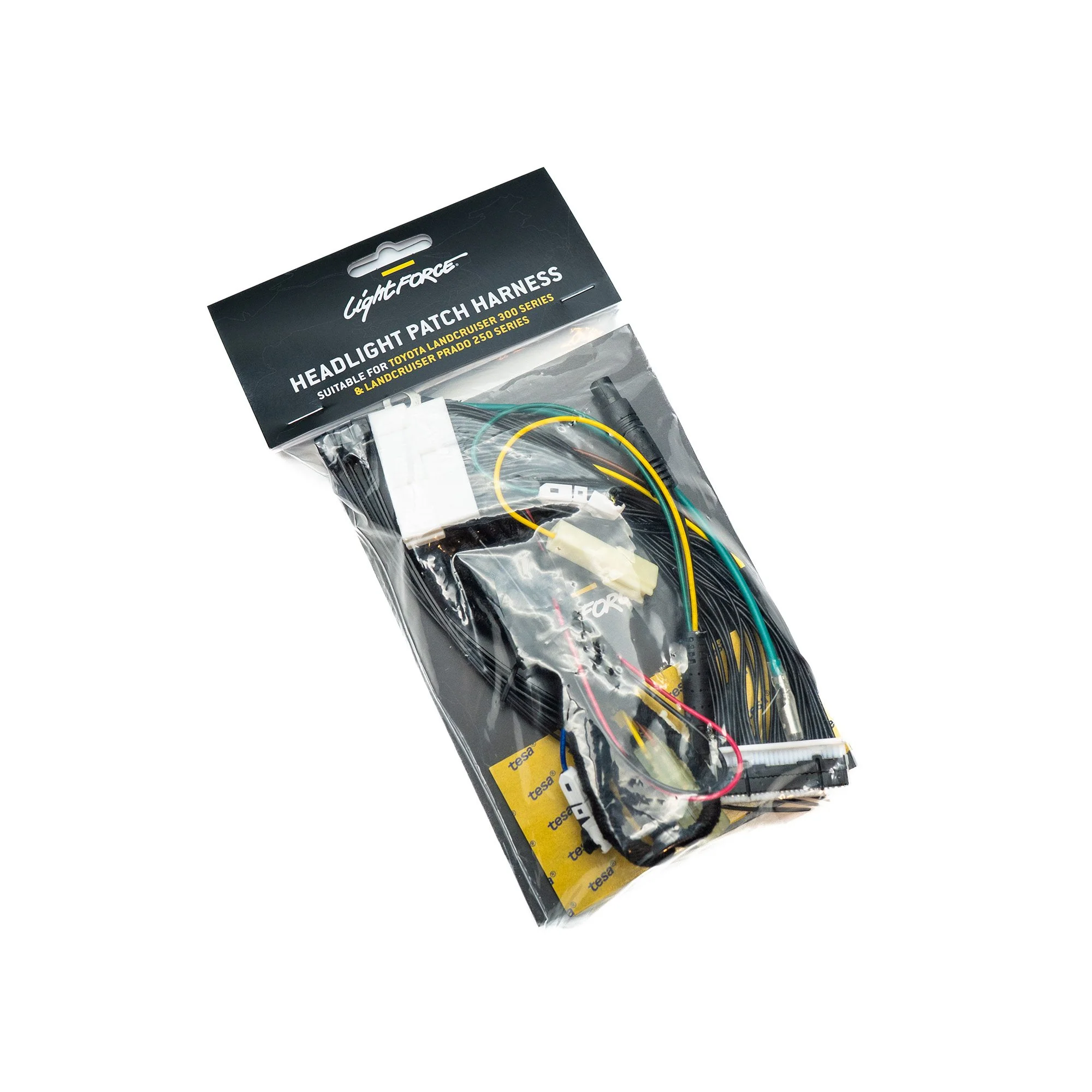

Lightforce LandCruiser 300 Series & Prado 250 Patch Harness
This specifically designed patch harness with logic board is specifically designed for the Toyota Landcruiser 300 Series and Prado 250 Series. It allows for a simple and safe integration into the vehicle's communication module, located inside the cabin under the steering column, thus providing easy integration into the vehicle's headlight system.
Provides a high beam pickup point for a range of Lightforce driving light wiring harness.
This patch harness is to be used with the range of Lightforce wiring harness and factory style switches for a true plug & play solution, enabling simple DIY installation of auxiliary driving lights and switches.

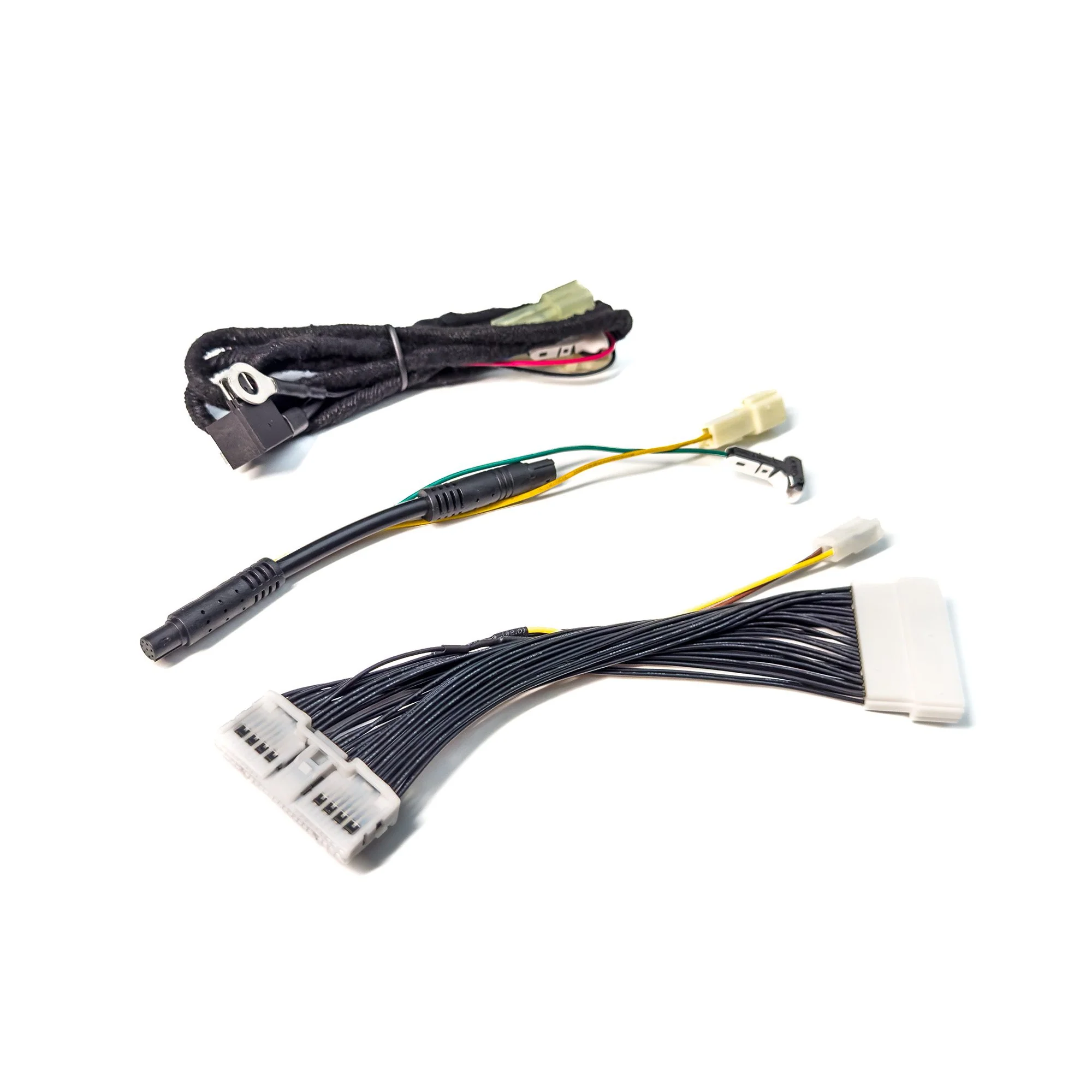

Kit Contents
- 40-Pin Patch Harness
- Logic Harness
- 8-Pin Switch Adapter
- Ground Pickup Wire
Compatibility
Only compatible with LFDLHBEAST-U, LFDLHSS, LFDLHTS2, LFDLHDS and all harnesses supplied with the Lightforce Viper Light Bars (LFLBHVSR and LFLBHVDR).
Note: Excludes positioning lights and DRL function.
| Lightforce Driving Light | Harness | Switch |
|---|---|---|
| BEAST | LFDLHBEAST-U | LFSWTY4BST-C |
| HTXMK2 | LFDLHDS | LFSWTY4HTX |
| GENESIS/VENOM | LFDLHTS2 | CBSWTY4DL + SWADP9 |
| STRIKER | (Included with Lights) | CBSWTY4DL + SWADP9 |
| VIPER LIGHTBARS | (Included with Light) | CBSWTY4L + SWADP9 |
Fitment Instructions
