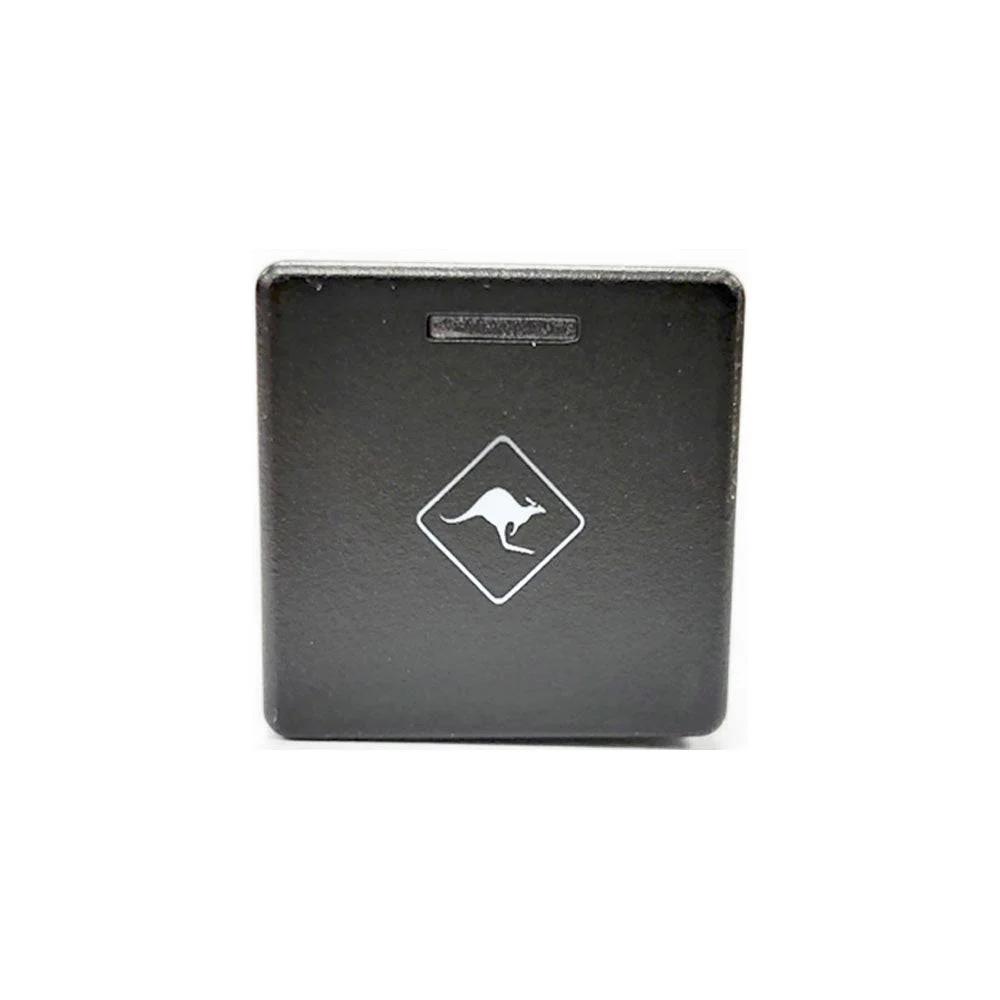

Lightforce DC4 Switch to suit Isuzu/Mazda 3rd Gen

Ideally suited for those who wish to integrate an additional switch into the factory switch locations.

This single switch fits the 22mm x 22mm factory switch locations, near the vehicle’s transmission selector.

Fitment location: In front, either side of the gear selector.



This Lightforce single switch is moulded from a blend of ABS plastic and polycarbonate to ensure longevity. Its compact design will integrate with the vehicle seamlessly.

Specifications Include:

• Dual LED illumination (white/blue)
• Suitable for positive switched vehicles only
• RoHS compliant
• Harness included (100mm in length)
• 3 amps current rating @ 12v
• Switch dimensions: 22mm (H) x 22mm (W)
• Mounting dimensions: 17.5mm (H) x 19mm (W)
• When switch is in the off position (up) the height of the switch top is the same as the existing factory switches
• When the switch is in the on position (down) the difference in height is less than 2.00mm



Electrical Specifications:

• Blue – 12v input
• Yellow – 12v switched output
• Not used
• Red – 12v dash light illumination
• Black - negative
• Positive switching only
• Independent 12v circuit for dash illumination
• Separate active LED is powered via the +ve switched output
• Negative is common for dash illumination LED and switch active LED
• LED illumination Colours – Dash lights on = white, active indicator colour = blue



Illumination:

The LED illuminates white via the dash light circuit, once the switch is pushed on, the LED illuminates blue.



Lightforce Harness Integration:

Use Lightforce part number SWADP4 for integration to Lightforce Driving Light harness LFDLHSS.



NOTE: Suits low-mid spec vehicles only as top spec vehicles do not have any suitable switch blanks available due to heated seats
