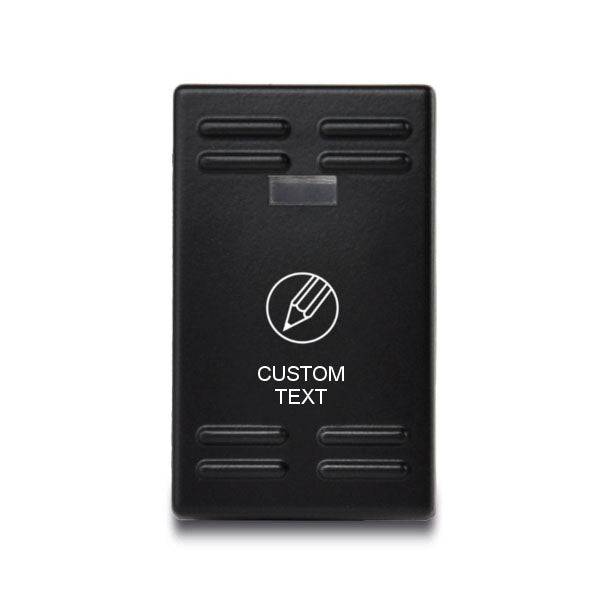

Custom Switch to suit Ford/Mazda
Suitable for the Ford Ranger PX1 and is an exact fit in to the original business card holder. Also compatible with second-generation Mazda BT50 from October 2011. (This is not suitable for the PX2).
This switch has a maximum current rating of 5 amps @ 12 volts and is to be used in conjunction with a relay.
Custom engraved icon illuminates white via the dash light circuit, once the switch is pushed on, the upper clear window also illuminates blue.
Supplied with connector and 100mm length harness in blister pack.
To remove business card holder from vehicle: First remove the fuse panel cover located next to the driver’s side door, then dislodge the lower trim panel located next to the fuse panel that has just been removed.
This will allow you access to the back of the switch blank (business card holder), apply light pressure to the top then the bottom to dislodge from within the dash.
DO NOT try and remove the switch blank by using a screw driver this will result in damaging the dash surface.
